NUX B-10 VLOG 2.4GHz wireless vlog system, omnidirectional electret condenser microphone and receiver

Wireless microphone system
NUX B-10 Vlog is a compact and lightweight wireless microphone system, consisting of a receiver and a transmitter, which can achieve a wireless distance of up to 30 meters. NUX B-10 can provide a stable wireless connection, record high-quality, low-noise, low-latency audio. It’s compatible with most existing cameras/mobile phones/tablets. And it’s a solution for Vlog shooting, product evaluation, event speeches, live broadcasts and web conferences.

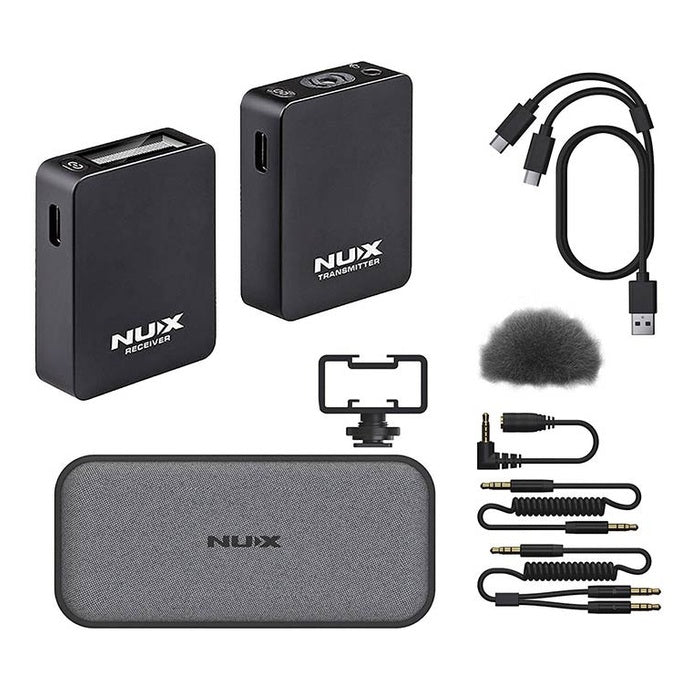

Included accessories
1x fur windshield
1x USB-C Y-cable
1x TRS(female) to RRS(male) adaptor cable for Mobile Phone(CTIA)
1x 3.5mm TRS cable for RX to camera
1x 3.5mm TRS Y-cable for 2 RXs to camera
1x Cold-shoe RX mount

B-10 Vlog equips a high-quality omnidirectional microphone unit, which can pick up sounds from different directions. It makes 44.1Khz/24bit high-quality recording with latency as low as 5ms and intelligent noise reduction. It ensures the sound and video are synchronized.

The transmitter has a 3.5mm TRS input for external lavalier microphone. A knob-style fur windscreen are also provided to dampen wind noise in windy outdoor weather conditions for extremely clear, professional sound in any situation.

Stable wireless connection
NUX B-10 Vlog features universal 2.4GHz digital transmission technology, and the transmission distance is up to 30 meters. Whether in dense urban environments, shopping malls or offices, whether shooting indoors or outdoors, the B-10 Vlog can provide you with stable and reliable wireless audio transmission.

Multi-level gain control
The gain of the B-10 Vlog can be adjusted in 5 steps from -12dB to +12dB, helping you to record more sound details.

Compact size, light weight
The transmitter of the B-10 Vlog features a clip-back design, which can be easily fixed on clothing. The receiver can be installed on the cold/hot shoe of the camera with the help of the hot shoe conversion plate, which maximizes the expandability of the camera.

The transmitter and receiver are both less than 30 grams, exquisite and compact, and hardly occupy the space of the camera bag. It also has a storage box, and its internal space allows you to keep all the equipment neat and safe.

Quick match
The transmitter and receiver are paired when they leave the factory, and they can be used immediately after powering on without any additional operations.

High-definition OLED display
B-10 Vlog has a built-in high-definition OLED display, and with the optimized UI design, it clearly displays the current working status of the wireless connection, which is convenient for shooting.

4 hours long battery life
The battery life of the B-10 Vlog can be up to 4 hours for the transmitter and 6 hours for the receiver. It comes with a USB-C Y-cable, you can charge the transmitter and receiver at the same time.

Specifications:
• Operating Frequency Band: 2.4 GHz
• Operation Length: Less than 100 feet (30m)
• Sampling Rate: 24-bit / 44.1 kHz
• Frequency Response: 50Hz-20kHz
• Latency: Less than 5ms
• Dynamic Range: 96dB
• THD+Noise: Less than 0.2% @1 kHz
• Built-in Battery Capacity (TX & RX): 400mAh/3.7V
• Maximum Input Level (3.5mm TRS): 100mVrms(-20dBV)
• Battery Running Time: 4 hours for TX, 6 hours for RX
• Microphone on TX: Omnidirectional Electret Condenser Microphone
• Maximum Sound Pressure Level: 110dB SPL
• Dimensions (TX/RX): 51mm(L) × 42mm(W) x 13mm(H)
• Weight (TX/RX): Each 28g
• Included Accessories 1: 1 x fur windshield, 1 x USB-C Y-cable, 1 x TRS(female) to TRRS(male) adaptor cable for Mobile Phone(CTIA)
• Included Accessories 2: 1 x 3.5mm TRS cable for RX to Camera, 1x 3.5mm TRS Y-cable for 2 RXs to Camera, 1 x Cold-shoe RX mount
