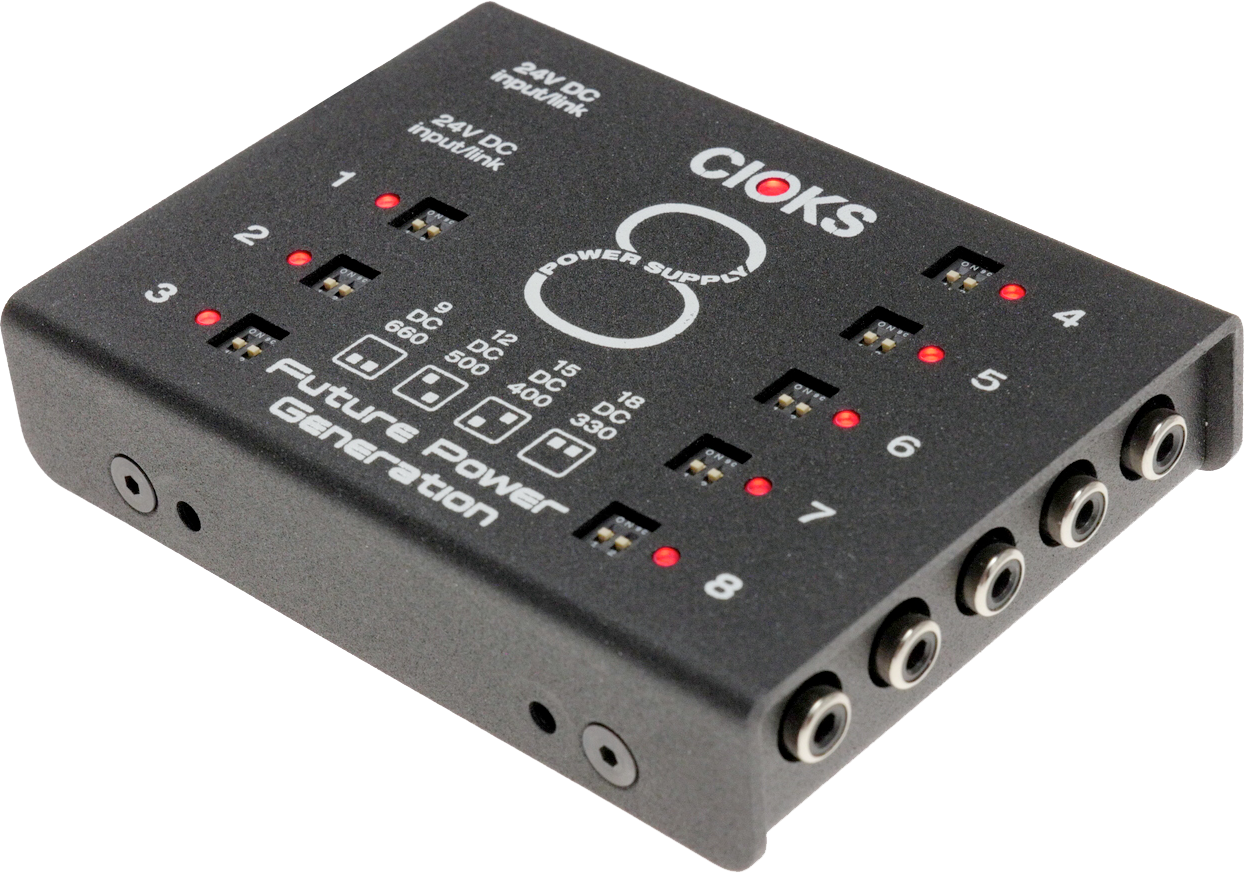

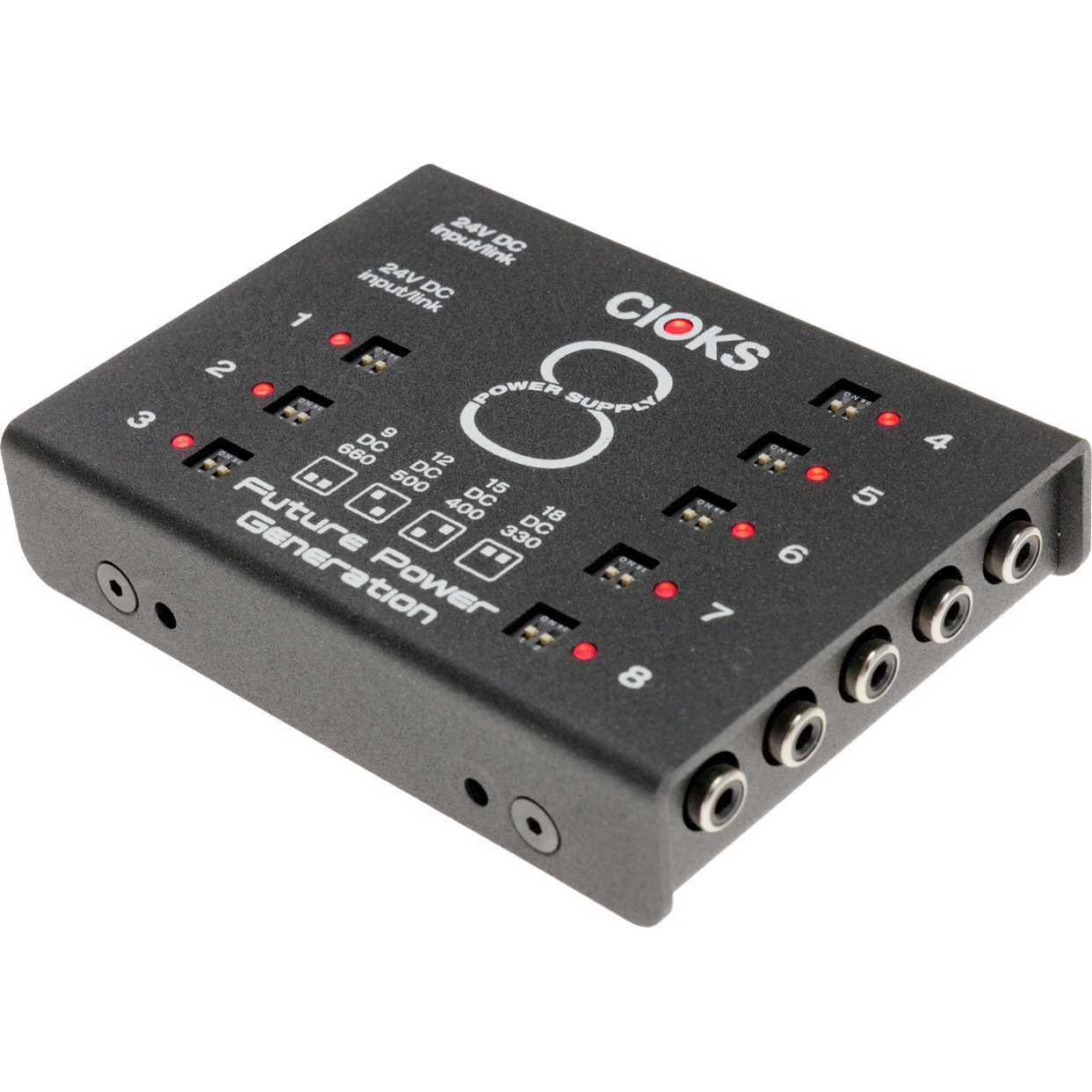

CIOKS CIOKS 8 multiple-output PSU

CIOKS 8 is our largest switch-mode power supply extender and it features 8 isolated outlets which each deliver 9V DC with 660mA. All eight outlets offer four switchable voltages (9V, 12V, 15V and 18V). CIOKS 8 was primarily designed to be used as a large extender to DC7 in case you need more outlets but it can also be used as a stand-alone power supply. To use CIOKS 8 as an extension to DC7 simply use the included DC Link cable to connect the CIOKS 8 to the courtesy 24V outlet on your DC7 and you are good to go. In case you want to use CIOKS 8 as a stand-alone power supply you can power it with any 24V DC adapter with the appropriate DC plug. To get the full 6W output power on all 8 isolated outlets the adapter used to power CIOKS 8 should have an output power of 60W. If you are looking for a super powerful power supply setup to power a large pedalboard, the combination of CIOKS DC7 and CIOKS 8 will definitely be an awesome solution as this combo will give you 15 isolated outlets in total with 4 switchable voltages on each outlet plus a 5V USB outlet to charge your smartphone or tablet (courtesy of DC7). Features - CIOKS 8 has the same groundbreaking 1-inch profile (25,4mm) as CIOKS DC7 - Ultra-low noise achieved by multistage filtering - 8 isolated DC-outlets, 6W each - 660mA at 9V DC on each outlet - 4 selectable voltages on each outlet - Global overload status LED - Total maximum output power 48W* - Mounting hardware for Pedaltrain and Templeaudio boards included - Compatible with CIOKS GRIP for drill-free mounting on Pedaltrain boards - 12 Flex cables included - 24V DC Link cable included - Designed in Denmark, assembled in Poland - 5-year worldwide warranty * provided sufficient power is applied on the input of the CIOKS 8. Outlet 1-8: - 9V DC / 660mA or - 12V DC / 500mA or - 15V DC / 400mA or - 18V DC / 330mA each Flex cables included: - 1x 1015 - Type 1 - 5,5/2,1mm DC plug, centre negative, L-shape, 30cm (black). - 3x 1030 - Type 1 - 5,5/2,1mm DC plug, centre negative, L-shape, 30cm (black). - 2x 1050 - Type 1 - 5,5/2,1mm DC plug, centre negative, L-shape, 50cm (black). - 1x 1080 - Type 1 - 5,5/2,1mm DC plug, centre negative, L-shape, 80cm (black). - 1x 2050 - Type 2 - 5,5/2,1mm DC plug, centre positive, L-shape, 50cm (red). - 1x 4050 - Type 4 - 5,5/2,5mm DC plug, centre positive, L-shape, 50cm (green). - 1x 5050 - Type 5 - 3,5mm Jack plug, tip positive, L-shape, 50cm (black). - 1x 1035 - Split Flex type 1, 30+50cm (black). - 1x 1533 - 3-way daisy chain Flex type 1, 30-30-50cm (black). Total of 12 Flex cables are included. The user is able to power 11 pedals of the BOSS standard type with the included Flex kit.
